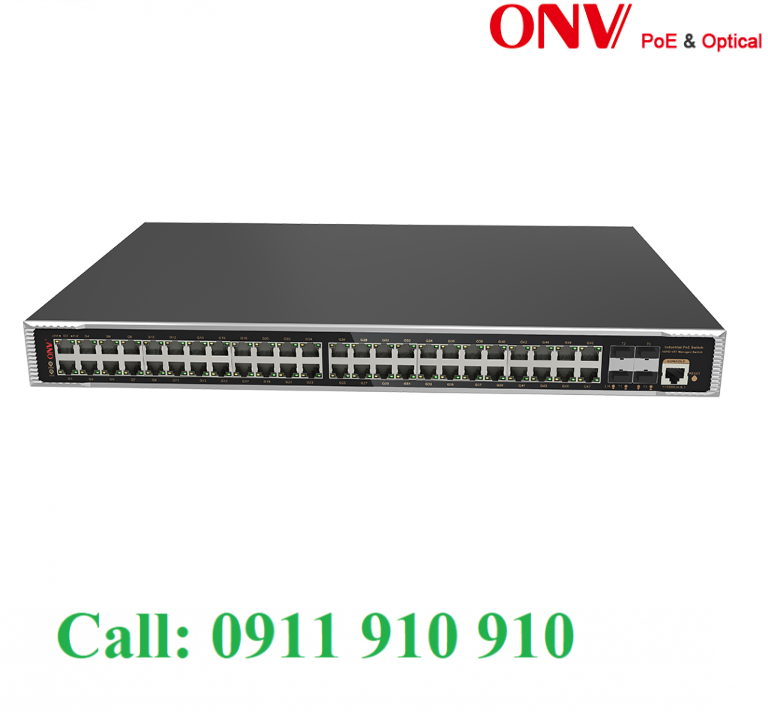

Switch công nghiệp 48 cổng POE + 4 cổng SFP 10G ONV-IPS58052PFM

48 cổng POE 10/100/1000Base-T

2 cổng nguồn DC48-57V

2 cổng nguồn AC100-240V

Cổng cảnh báo (FAULT)

1 cổng quản lý (115200, N, 8,1)

Chế độ làm việc full/ half duplex

Tự động kết nối MDI/ MDI-X

100BASE-TX: Cat5 or later UTP (≤100 meters)

1000BASE-T: Cat5e/6 or later UTP (≤100 meters)

Tùy chọn đặt hàng: single-mode / multi-mode, single fiber / dual fiber optical module. LC

Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km

IEEE 802.3i 10Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3ab 1000Base-T

IEEE 802.3z 1000Base-X

IEEE 802.3ae 10GBase-LR/SR

IEEE 802.3x

Thiết kế cổng nguồn đầu vào kép: Ưu tiên nguồn điện AC để hỗ trợ bảo vệ chống kết nối ngược và tự động chuyển sang kết nối DC khi mất điện.

Lightning protection: 6KV 8/20us

IEC61000-4-3(RS):10V/m (80~1000MHz)

FCC Part 15/CISPR22 (EN55022): Class B

IEC61000-6-2 (Common Industrial Standard)

IEC61000-4-9 (Pulsed magnet field): 1000A/m

IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz

IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV

IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV

IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s

IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)

IEC61000-4-8 (Power frequency magnetic field):100A/m,1000A/m,1-3s

IEC61000-4-5( Surge): Power cable: CM±4kV/DM±2kV, Data cable: ±4kV

IEC60068-2-32 (Free Fall)

IEC60068-2-27 (Anti Shock)

Port exception protection mechanism

Port real-time flow management (Flow Interval)

Broadcast storm suppression based on port rate

Optical port SFP module DDMI real-time digital diagnosis

Port EEE Green Ethernet Energy-Saving configuration and status view

Limit the rate of incoming and outgoing packet traffic, mini granularity is16Kbps and max is 1Gbps

ARP protocol, max 1000 entries

IPV4/ IPV6 VRRP, max is 255 group

IPV4/ IPV6 VLANIF port, max128 entries

Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6

IPV4/ IPV6 static route/ default route, max128 entries

IPV4 dynamic routing, RIPv1/v2, OSPFv2, routing 4000 entries

L3 network management function, IPV4/ IPV6 dual-stack management

IPV6 dynamic routing OSPFv3, RIPng, IPV6 management, routing 1000 entries

L3 routing and forwarding, support communication between different network segments and different VLAN

GVRP VLAN protocol, Port configuration of Access, Trunk, Hybrid

(4K) VLAN based on port, IEEE802.1q, Voice VLAN, QinQ configuration

Max 26 aggregation groups and max 8 ports per group.

STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

User quick log out, MVR (Multicast VLAN Registration)

IGMP Snooping v1/v2/v3 and 1024 multicast groups at most

Supports 1-to-multiple mirroring, supports up to 4 port sessions

Queue scheduling algorithm (SP, WRR, SP+WRR)

Flow-based packet filtering, 8*Output queues of each port

802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority mark/ remark

L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.

SSL guarantees data transmission security

Quad binding function of IP+MAC+VLAN+ports

MAC address learning limit, MAC address black hole

IP Source Guard function, AAA& RADIUS certification

Anti DoS attack, Port broadcast message suppression

Hierarchical user management and password protection

SSH 2.0 provides a secure encrypted channel for user login

Host data backup mechanism, ARP intrusion detection function

Port isolation, IP Source Guard, ARP message speed limit function

Link Layer Discovery Protocol(LLDP)

Viewing CPU Instant Utilization Status

NTP clock, One click restore, SNMP V1/V2/V3

Cable status check, Ping detection, System work log

ONV NMS platform cluster management (LLDP+SNMP)

Console/ AUX Modem/ Telnet/ CLI command line configuration

FTP, TFTP, Xmodem, SFTP file upload and download management

TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
